This report is a combination of Org. KPI Report and Planning KPI report, which displays KPI details and performance ordered by selected hierarchy. KPIs must have targets entered and they must be linked to the selected hierarchy level in order for KPI to appear in the report.
STEP 1: To access this report, go to Reporting > Performance Measurement > select the 'KPI Report'.
STEP 2: Select the relevant criteria and click the 'Preview' button.
The filters available to sort the details to be included are:
|
Filters |
Description | Default Selection |
|
Hierarchy |
Select the type of hierarchy |
ORG Hierarchy |
|
Hierarchy level |
Select the hierarchy level | Organisational |
|
Hierarchy Node |
Select the hierarchy node according to the tree structure NOTE: KPIs must be linked to these Hierarchies in order for the KPI to appear |
Organisation |
|
Date range |
Use 'From' and To' fields to select the date range | Current financial year |
|
Responsible officer |
Select the responsible officer from the dropdown list in order to filter the KPIs by responsible officer | Displays all |
|
Reporting officer |
Select the reporting officer from the dropdown list in order to filter the KPIs by reporting officer | Displays all |
|
Reporting Period |
Select the KPI measurement period (I.e. Monthly, Quarterly etc.) | Displays all |
|
Aggregation |
Select the KPI aggregation method | Displays all |
|
Calculation Method |
Select the KPI Calculation method | Displays all |
|
Agency |
Select the agency from the dropdown list | Displays all |
|
Related Plan |
Select the Related plan from the dropdown list | Displays all |
|
Show Additional KPI information |
Tick the option to include additional KPI information | Ticked OFF |
|
Show KPI Data Grid |
Tick the option to include data grid | Ticked ON |
|
Show KPI Line Graphs |
Tick the option to include line graphs | Ticked ON |
|
Show Archived KPIs |
Tick the option to include archived KPIs | Ticked OFF |
|
Show Confidential KPIs |
Tick the option to include confidential KPIs | Ticked OFF |
|
KPI Filter |
Tick box controls to display KPI filters | Ticked OFF |
|
Show Filter Page |
Tick to show the filter page | Ticked ON |

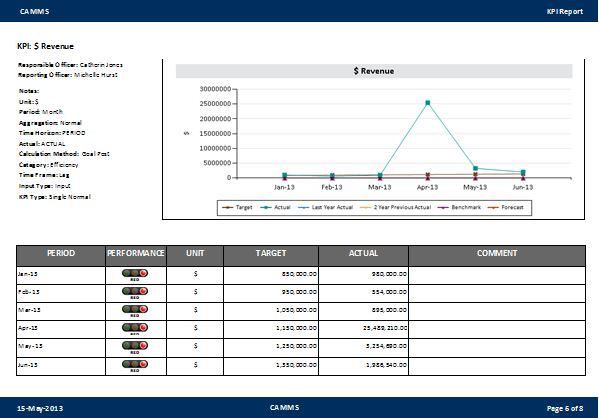

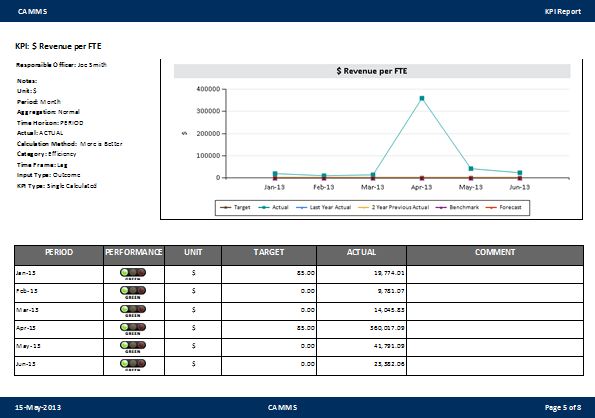

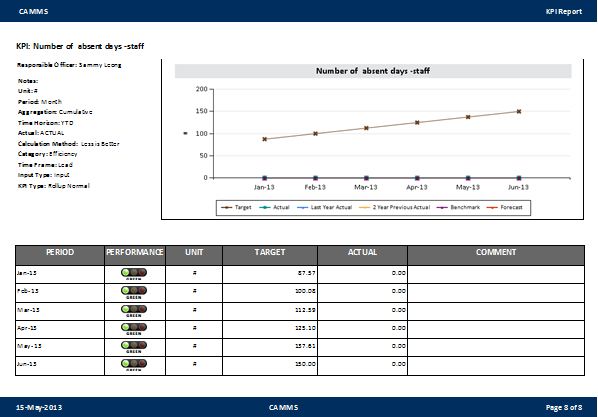

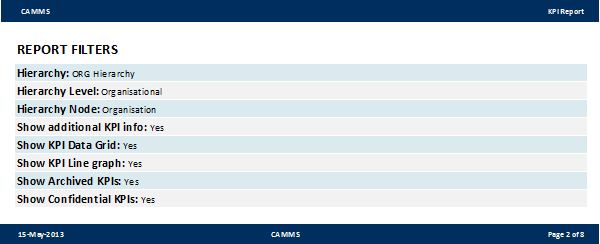

Sample Output
